Multi-fork

Underhaug Multi-fork

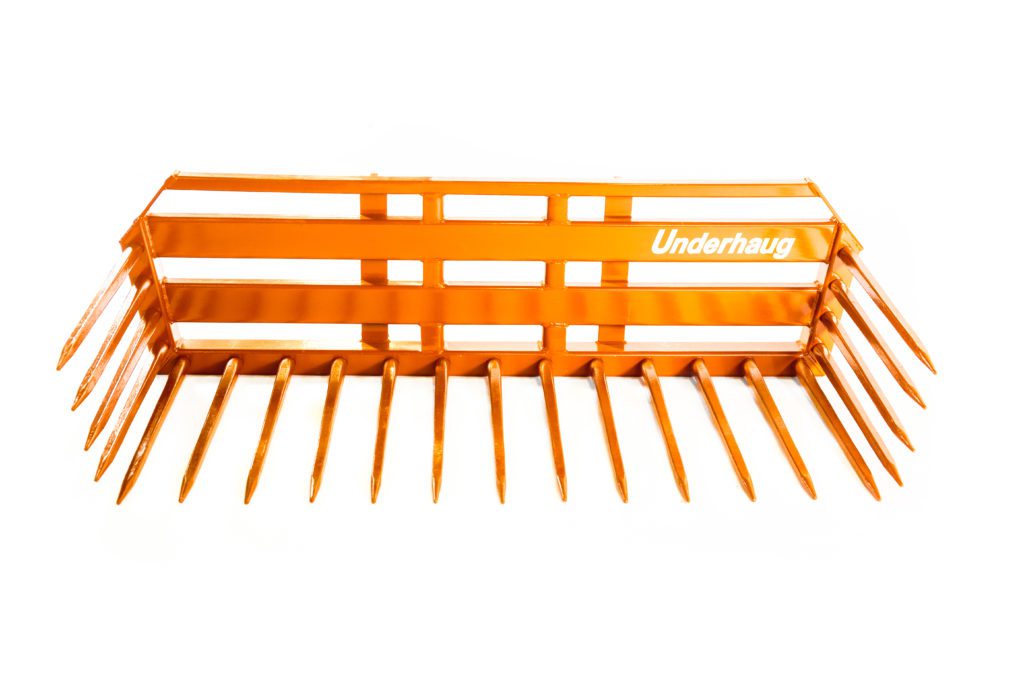

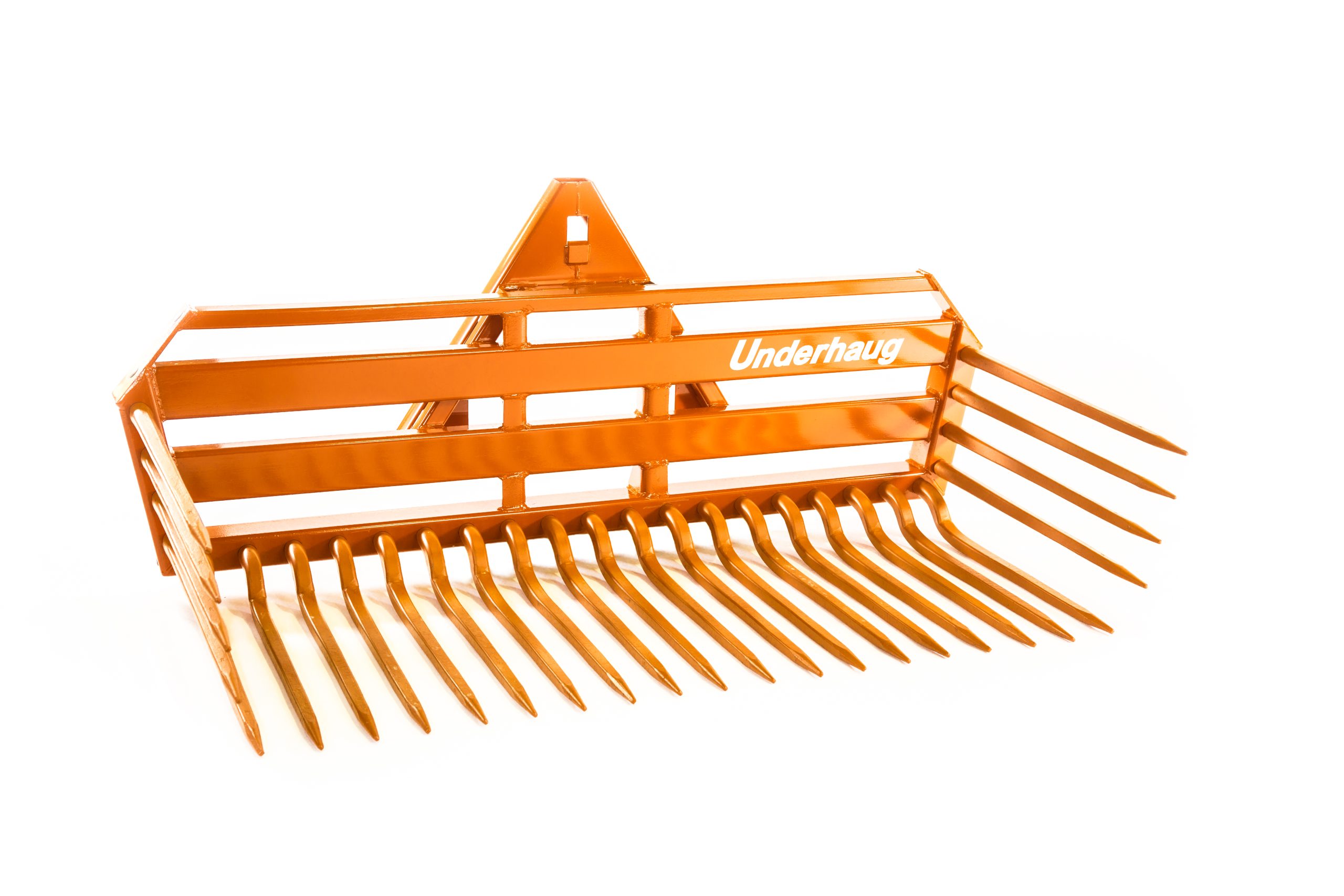

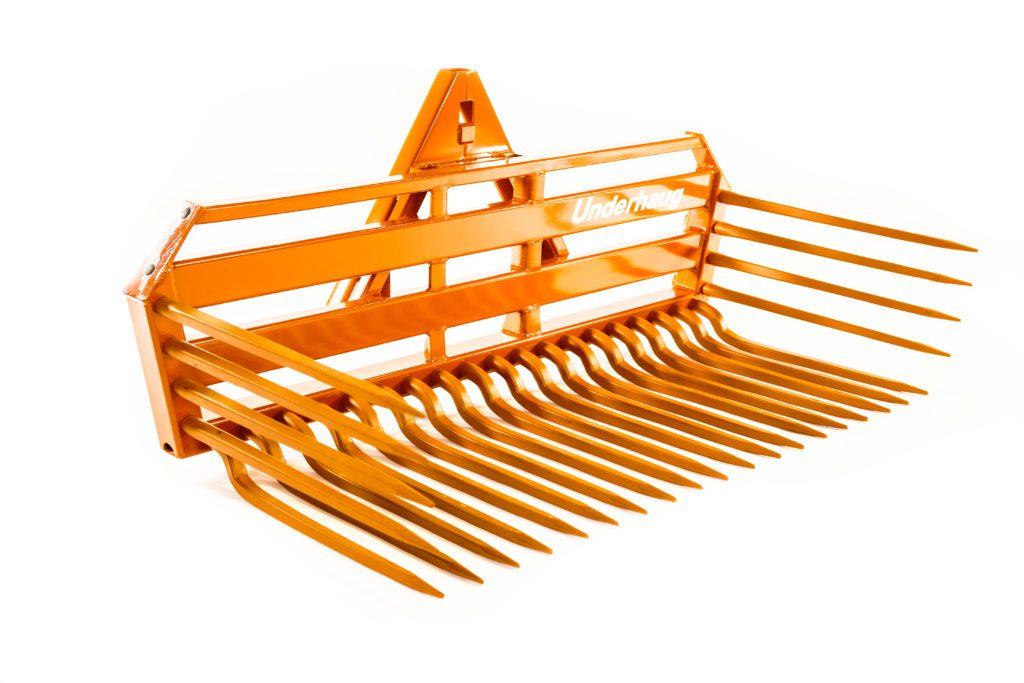

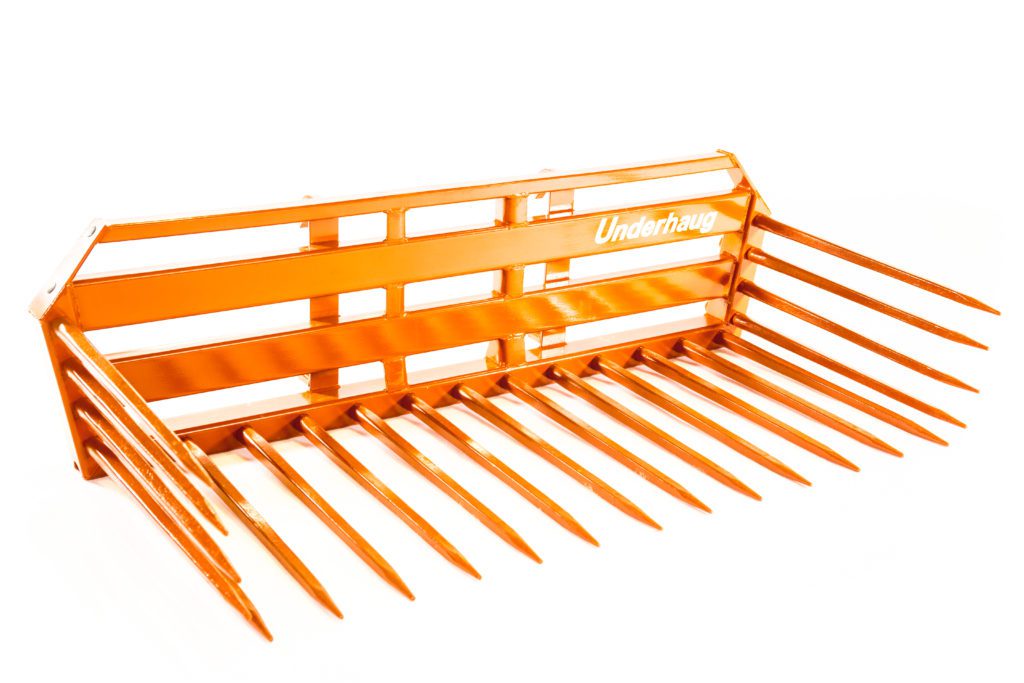

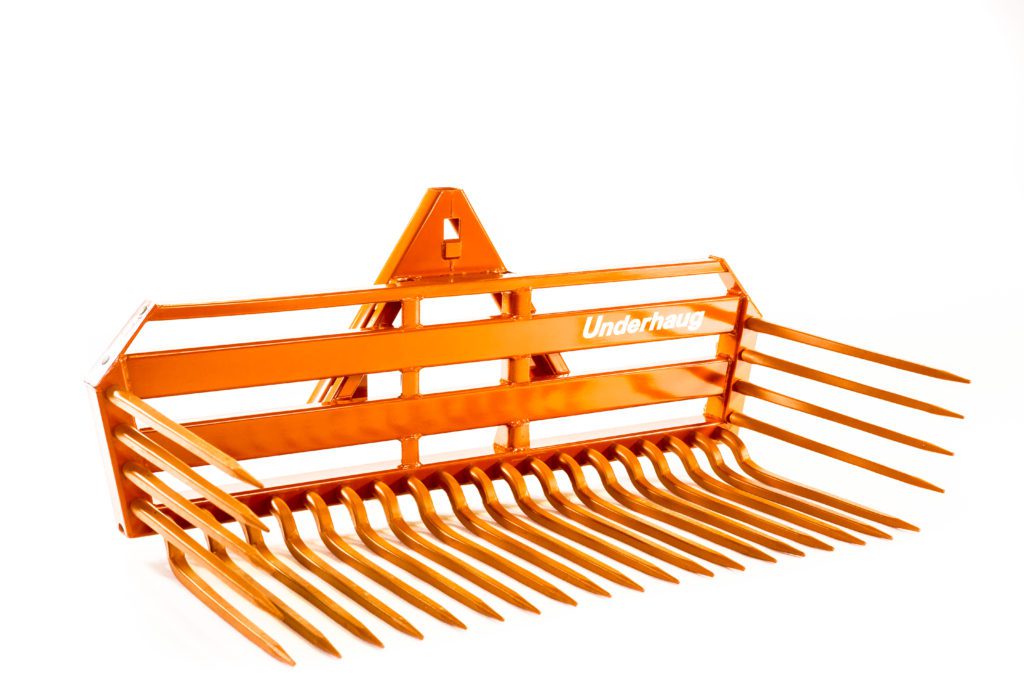

The Underhaug Multisvans is a multi-fork implement for front or rear mounting –suitable for all transportation tasks. It is easy to adapt to all types of front loaders / tool carriers. Can also be delivered with standard 3-point connection.

A unique tool

The Underhaug Multisvans is a unique multi-tool for handling stone and many other loading and transportation tasks such as: silage, dry manure, firewood, straw and hay bales, pallets etc. This is a real multi-fork implement! Robust frame design The frame is made of solid square tubes. The entire structure is reinforced with Kverneland’s unique steel heat treatment method. This applies also to the tines.

Different widths, tine spacing and tine types

Underhaug Multisvans can be delivered in widths of 1.5 m, 2 m, 2.5 m and 3 m. Available with tine spacings 10 cm, 15 cm, 20 cm or 30 cm, with straight or curved tines. The cranked tines are especially suitable for various loading tasks and for gathering stones on top of loose soil. It’s not necessary to lower the frame completely down to the ground. The result is better separation and less wear. The result is better separation and less wear on the cross beam.

Efficient

Underhaug’s Multisvans with a hydraulic top linkage is an efficient multi-fork for breaking and transporting stones and roots. Mounted on a front loader it is a useful implement for handling silage, dry manure, stones etc. The four side tines provides safe handling and transportation with a full load. By dismantling some tines, Multisvans can also be used as a pallet fork.

Various couplers

As standard Multisvans is delivered without connection brackets/ couplers. Choose between: Trima, Ålø, Bergsjø, Ålø type III, Large Volvo, Small Volvo and Stoll. In addition we can deliver tilt-frame (mechanical) for three-point linkage.

Technical specifications:
