Simple and functional direct grass seed drill

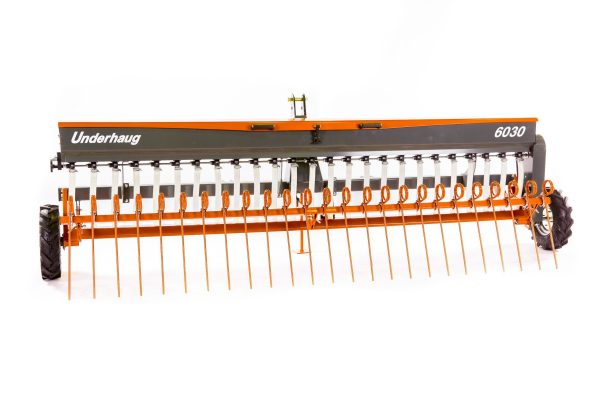

Underhaug grass seed drill is suitable for seeding or reseeding meadows, pastures, lawns etc.
The machines are delivered as standard with three point linkage connection and adjustable rear harrow. The hopper has an effective agitator shaft for precise seeding even on hilly fields. The seed drill has tractor pattern tires. The drive is transferred via chains to the feed rollers. Feeding amount is set with a wheel with different positions and the choice of two speeds. The rear harrow is easily adjusted with pins.
Technical specifications:
| Grass seed drill |
UM 6025 |
UM 6030 |
| Weight |
165 kg |
185 kg |
| Working width |
2,5 meter |
3 meter |
| Total width |
2750 mm |
3230 mm |
| Height |
1050 mm |
1050 mm |
| Seed box capacity |
99 L |
120 L |
| Tire size |
4.00 x 8 |
4.00 x 8 |
| # Seed rollers |
21 |
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
