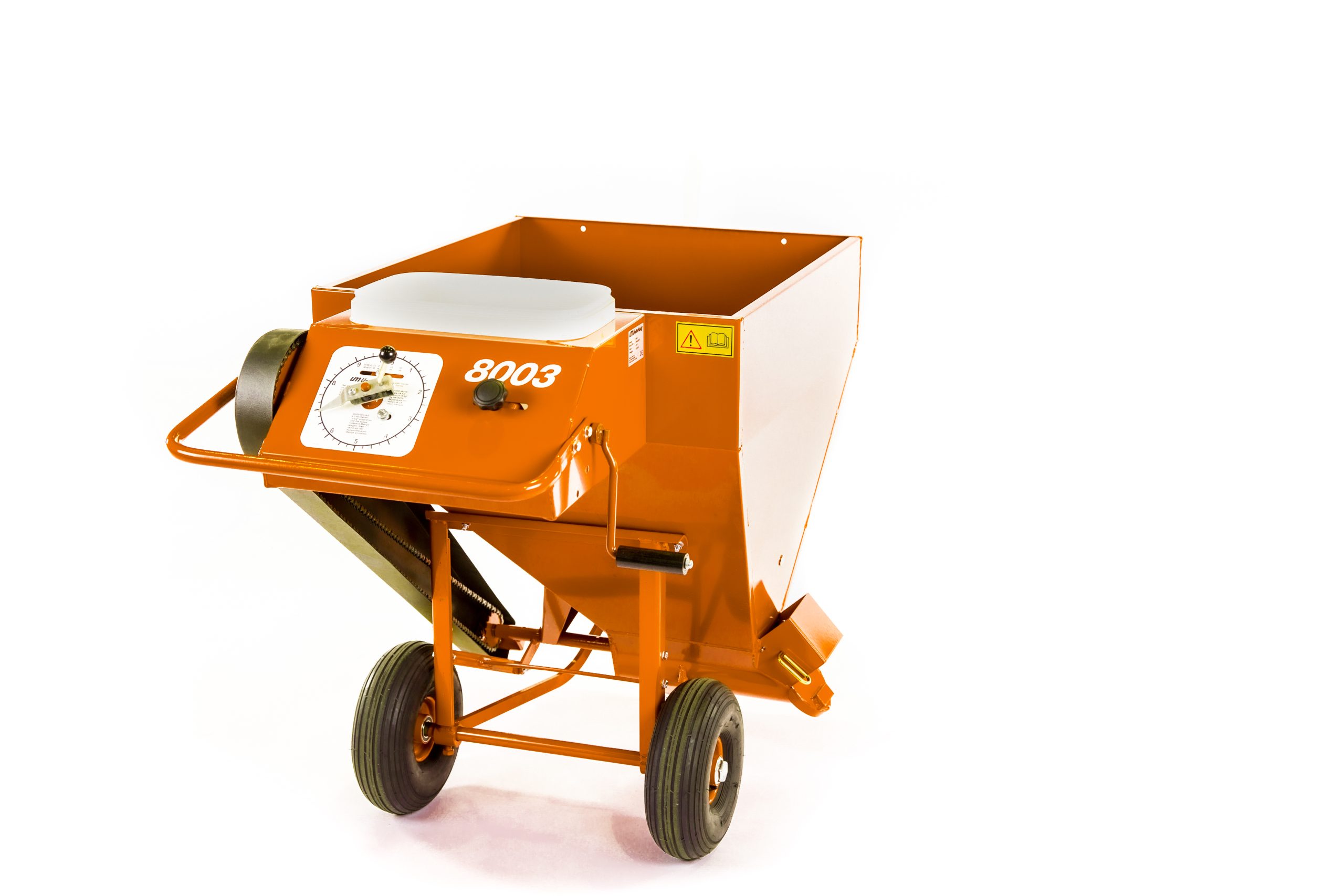

Concentrate Trolley, UM-8003
Please contact us to find your closest dealer!
Description

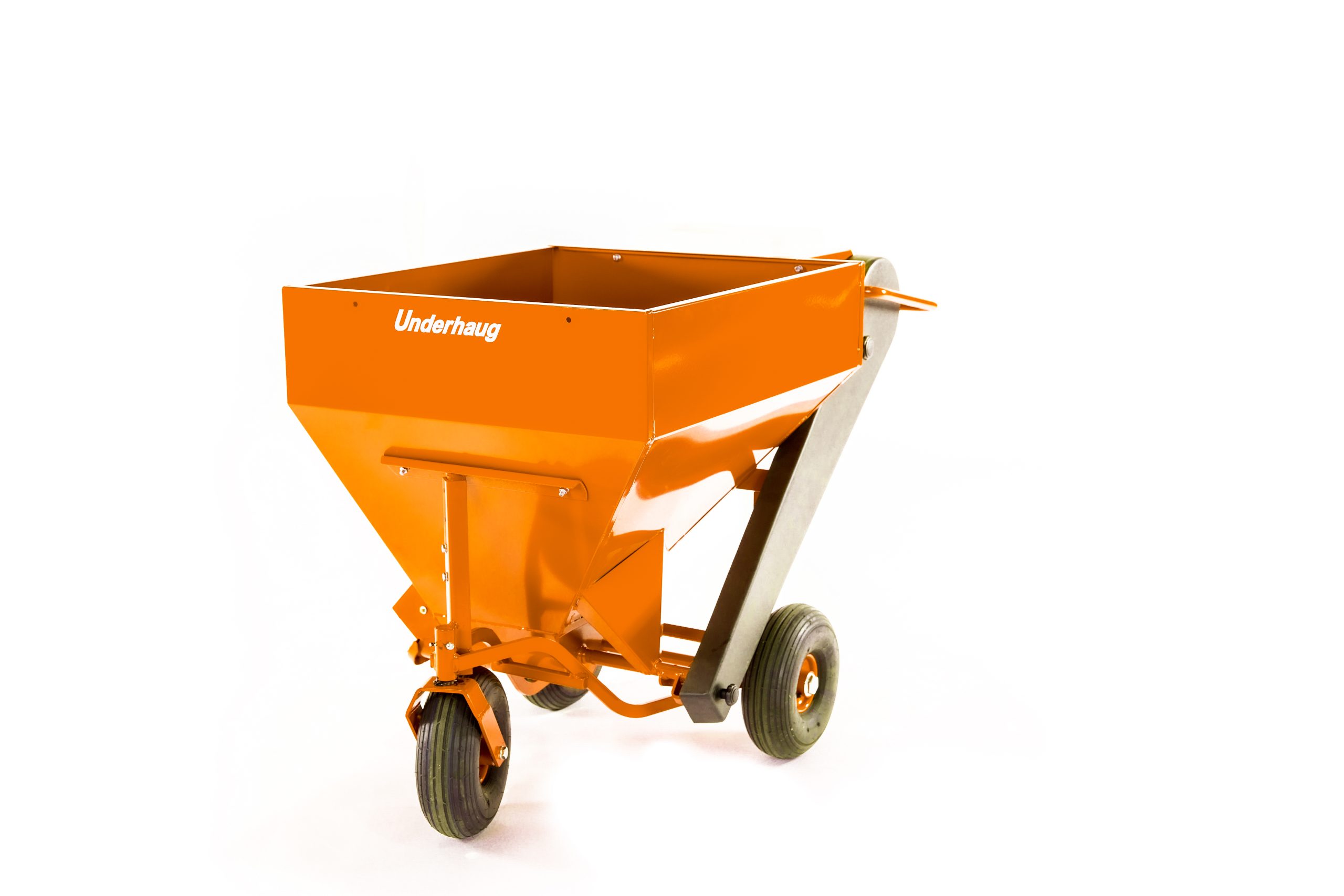

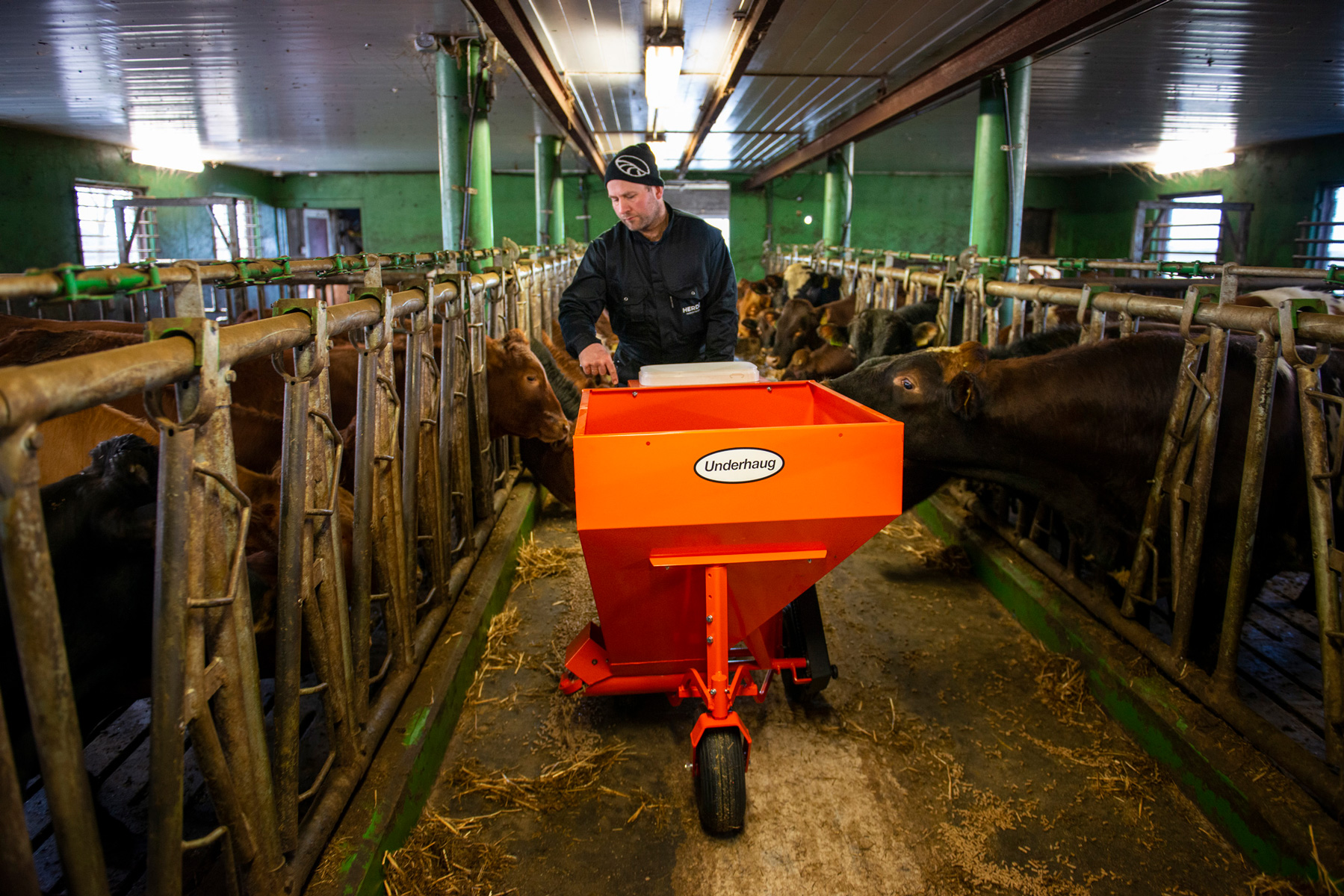

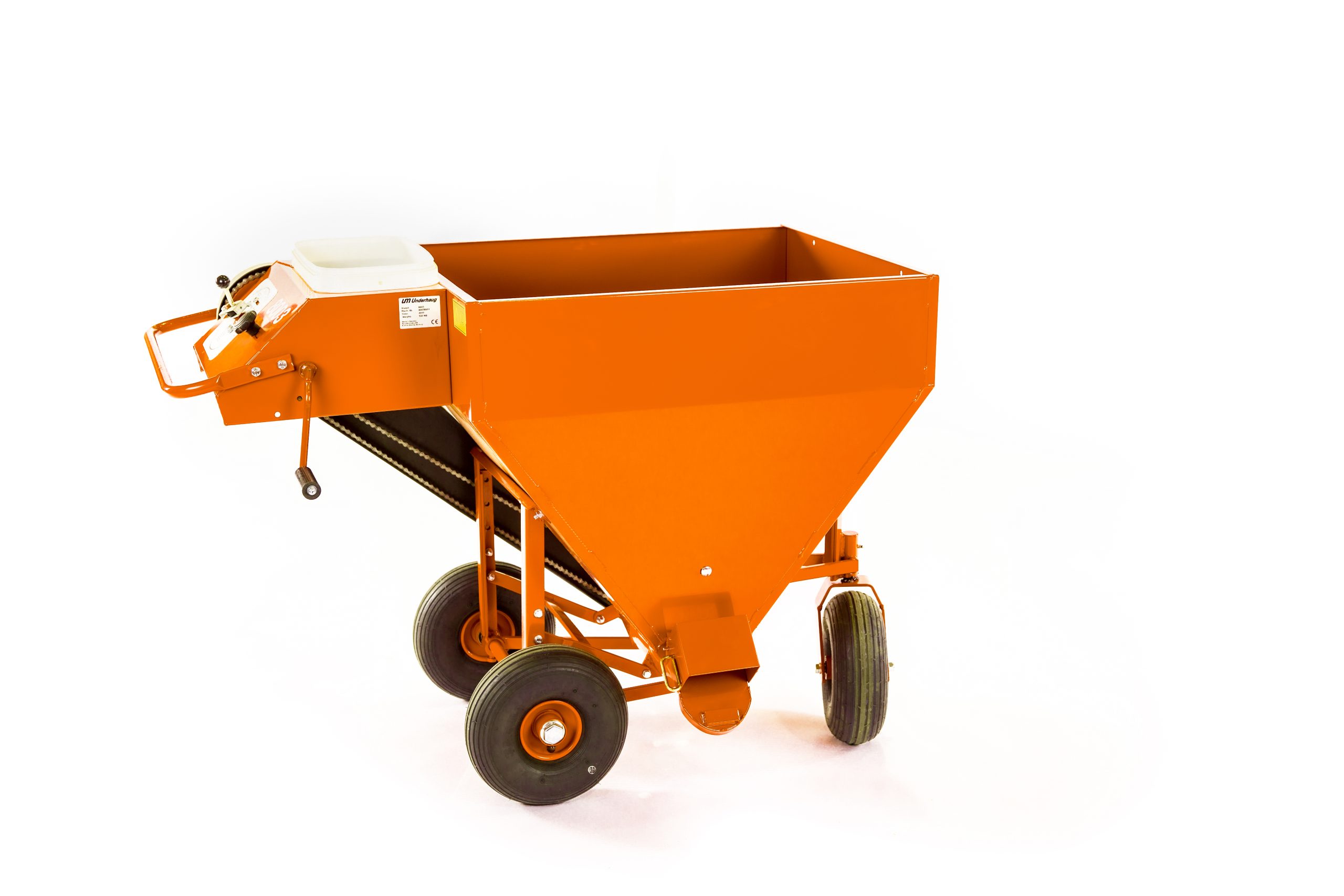

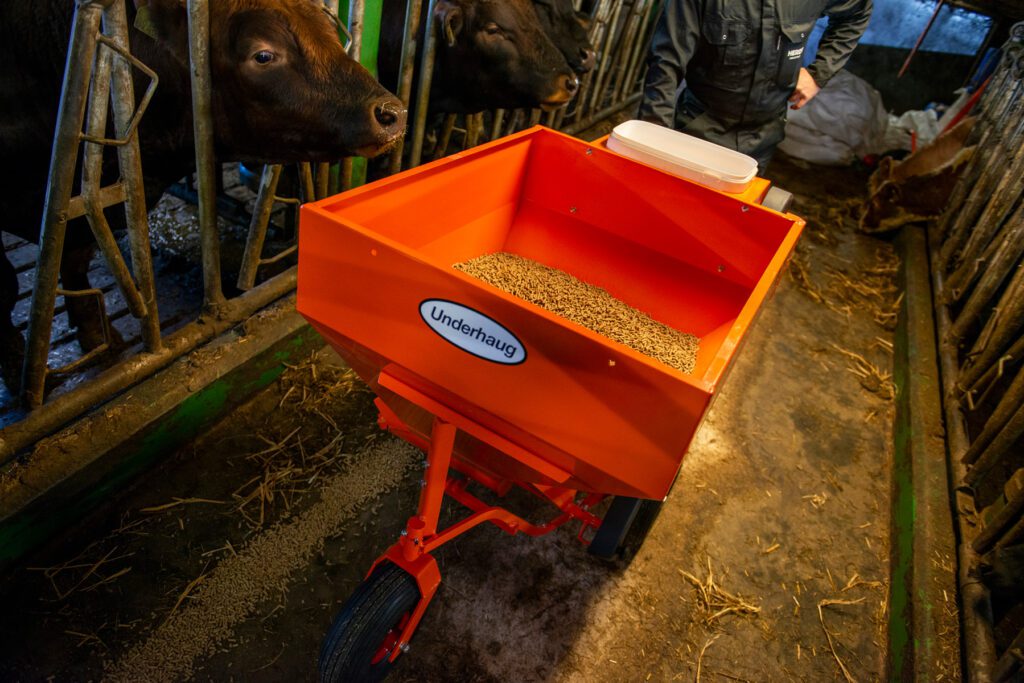

Concentrate Trolley with wheels – for fast and precise feeding.
Application

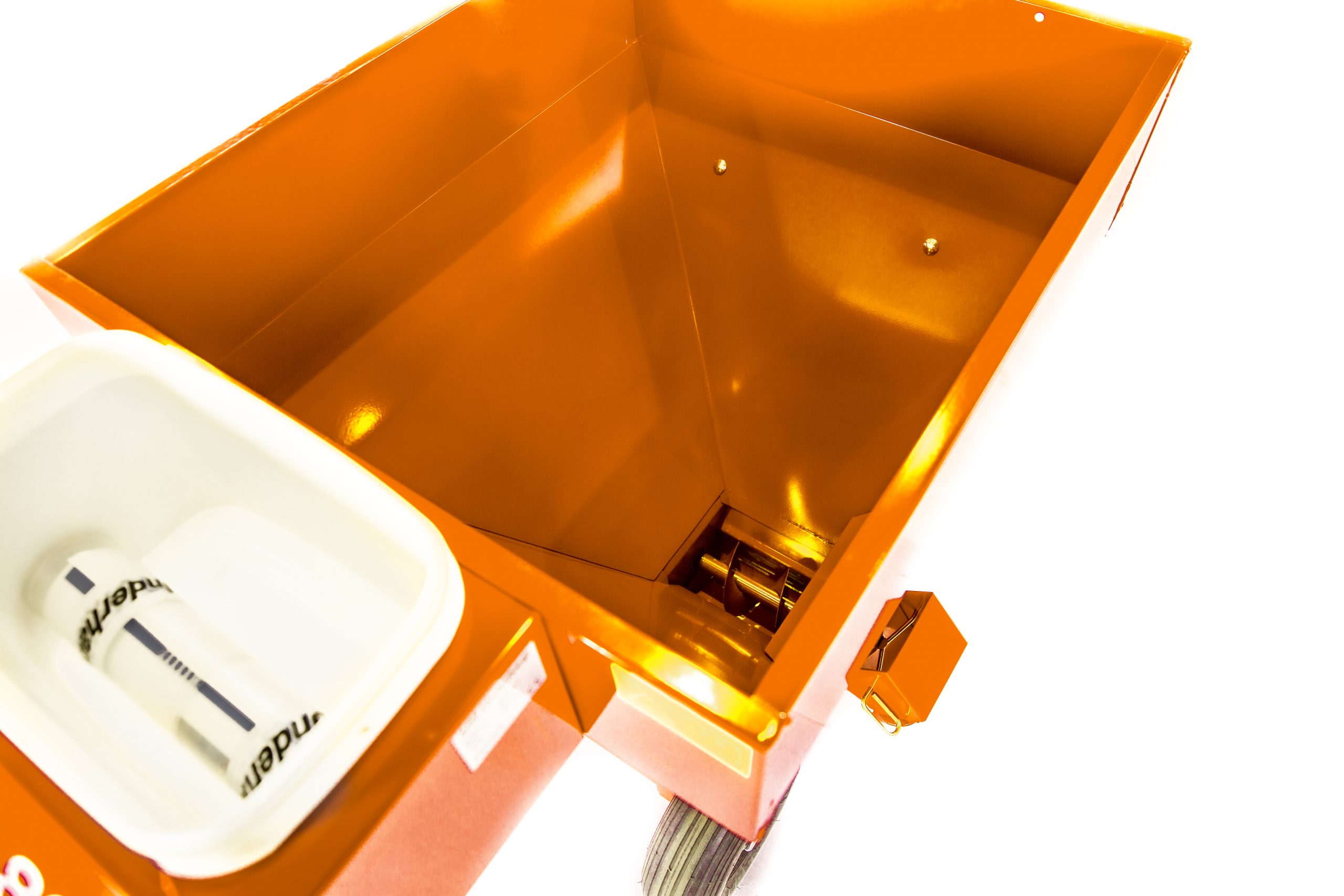

The metering system is simple- precise and safe. The discharge rate is adjusted with a screw at the bottom of the trolley.
The discharge rate is indicated on a scale

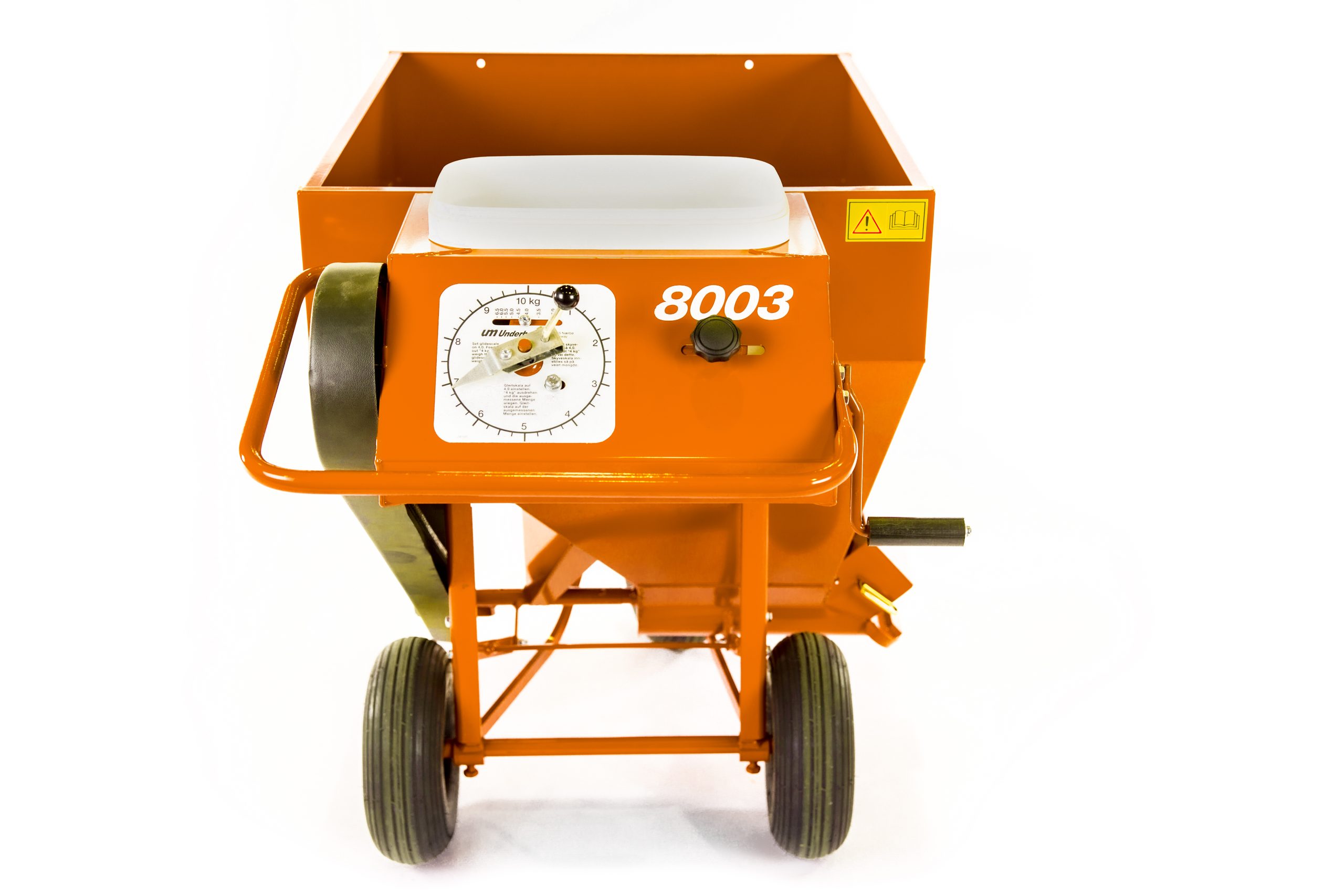

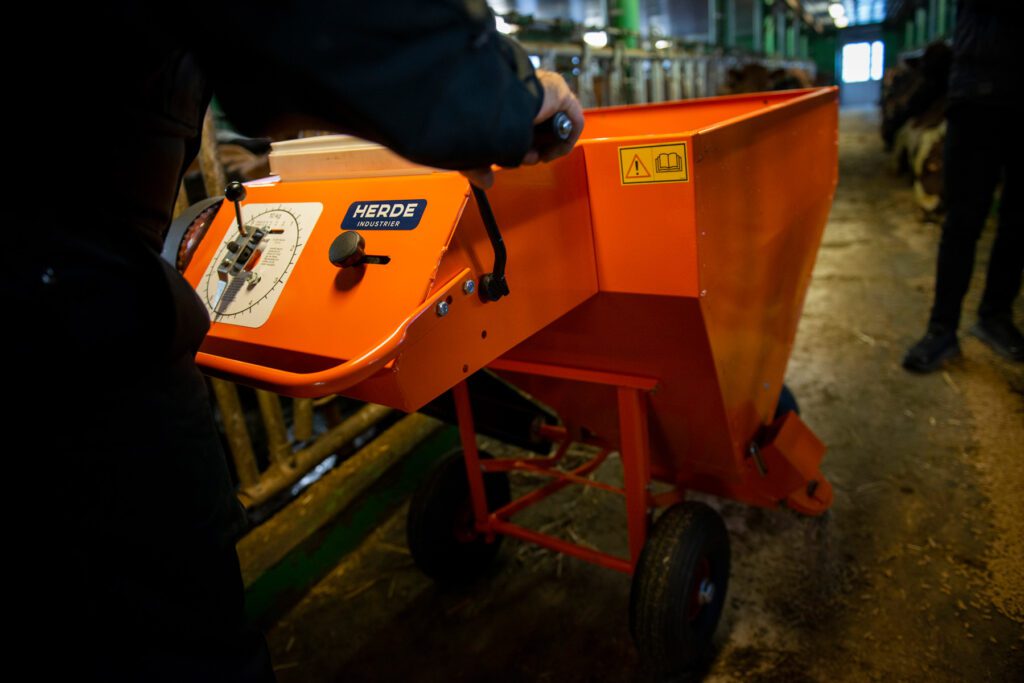

The well-laid out and easy-to-read scale shows concentrate amount from 0-10 kg. The scale can be set steplessly (calibrated) in relation to the speed of the discharge screw. The scale therefore displays the discharge rate accurately (kg) regardless of the type of concentrate used.
Flexible

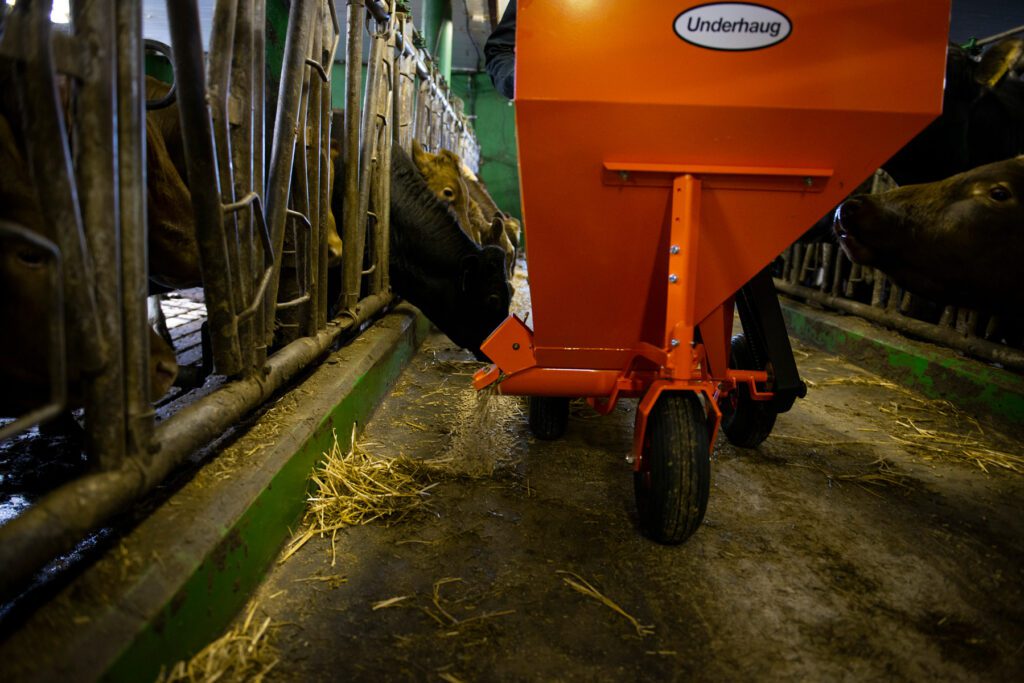

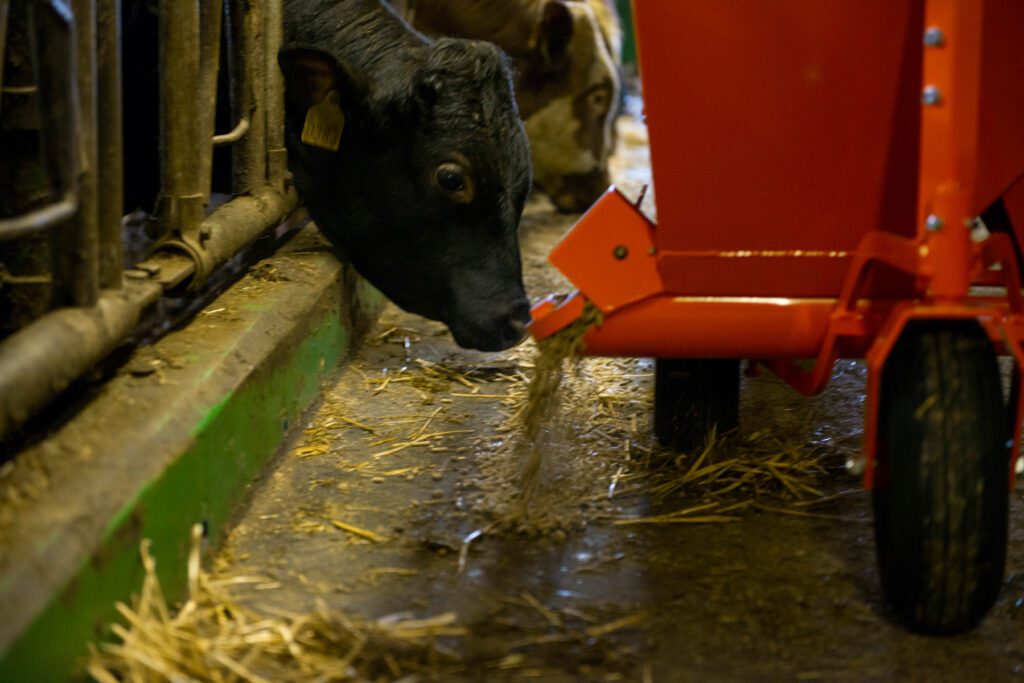

The discharge spout can be adjusted to suit different heights of trough. The track is adjustable.
Brake disc 241295
The brake disc is designed to reduce spills of pellets at the discharge spout. It transmits the pressure away from the discharge spout. Also recommended on old trolleys. Rubber tire set 8012. Rubber tires can be fitted to an old trolley without any modifications. These wheels have larger diameters.
Technical specifications:
| Tot. length (incl. handle) | 128 cm |
|---|---|
| Max. Width | 78 cm |
| Wheelbase (ext.) | 62 cm |
| Overall height | 93 – 143 cm |
| Height of discharge spout | 15 – 65 cm |
| Volume | 200 l |
| Unladen weight | 70 kg |
